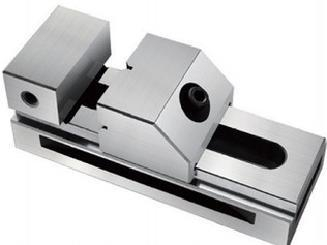

characteristic:

Angle-fixed design, the half-round ball can produce a downward

force of30°during the clamping process to ensure that the workpie

cedoes not float up.

The jaw and lead screw are quenched.

The fixed jaw is fastened by four bolts to reduce dynamic deforma

tion.

The same height can be used in parallel.

The fixed end ofthe lead serew adopts thrust bearing, which reduc

esfriction and has large clamping force.

Materialis HT250

Fixed accuracy:

Parallelism oftong body guide rail to bottom surface:0.02/100m

Straightness ofjaw face to bottom:0.025mm
